DJI D-RTK 3 Multifunctional Mobile Station

DJI D-RTK 3 Mobile Station

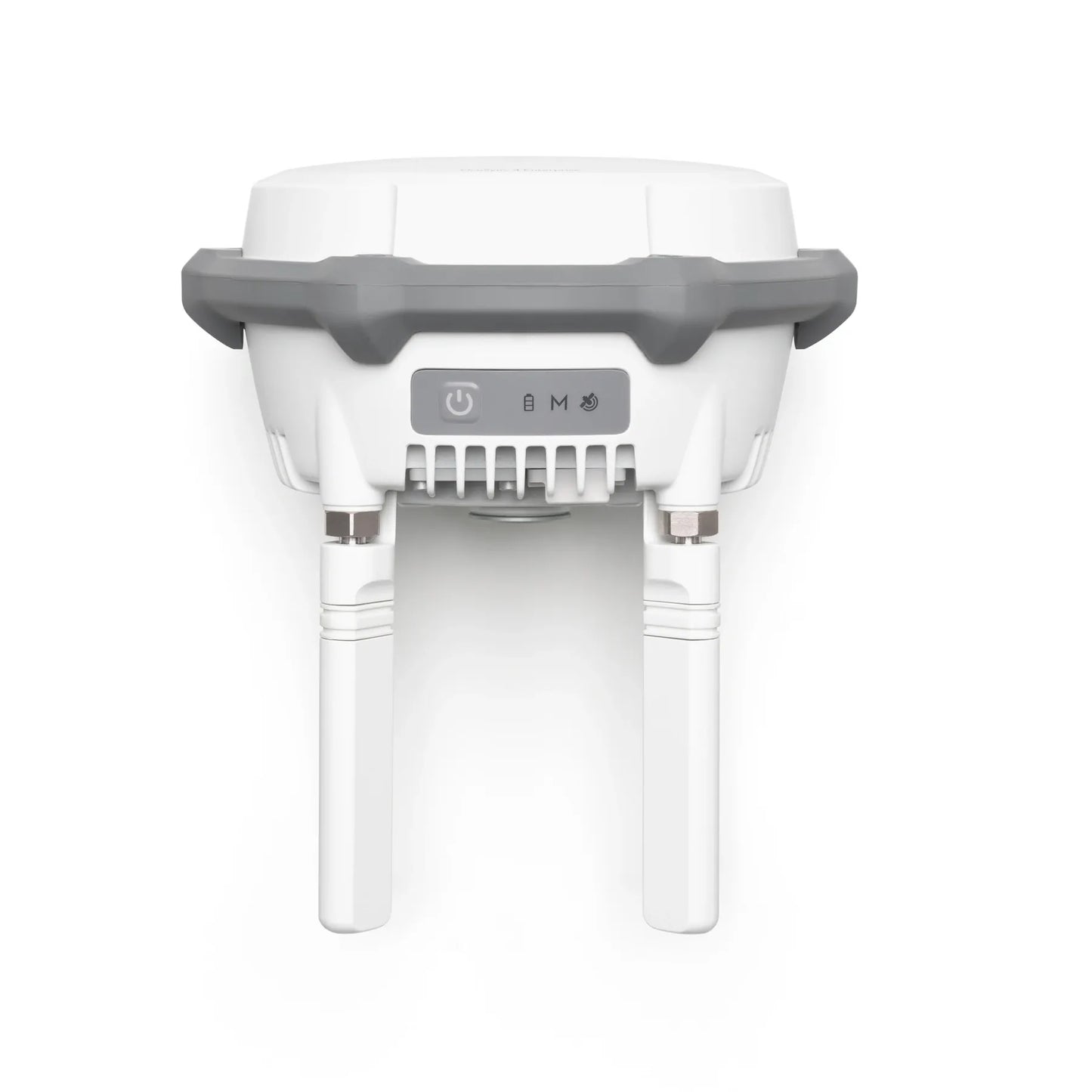

The DJI D-RTK 3 Mobile Station is a high-precision GNSS receiver that provides centimetre-level positioning data for professional drone operations, including surveying, mapping, and inspections.

Its integrated antennas support all major global satellite navigation systems (GPS, GLONASS, BeiDou, Galileo, and QZSS), ensuring stable and accurate data even in challenging environments. The unit is designed for versatility and can be deployed in three distinct modes to suit your mission's needs.

Key Functions:

• Base Station Mode: Transmits real-time differential data to a drone, providing highly accurate positioning and enabling RTK on your Agras T100

• Relay Mode: Functions as a communication link, extending the transmission range up to 25 km for operations over long distances or in areas with signal obstruction.

• Rover Mode: Can be used as a handheld network RTK rover to quickly and accurately measure ground control points.

Built with an IP67 rating, the D-RTK 3 is durable and designed for reliable performance in various field conditions. It integrates seamlessly with DJI Enterprise drones and software like DJI Terra.

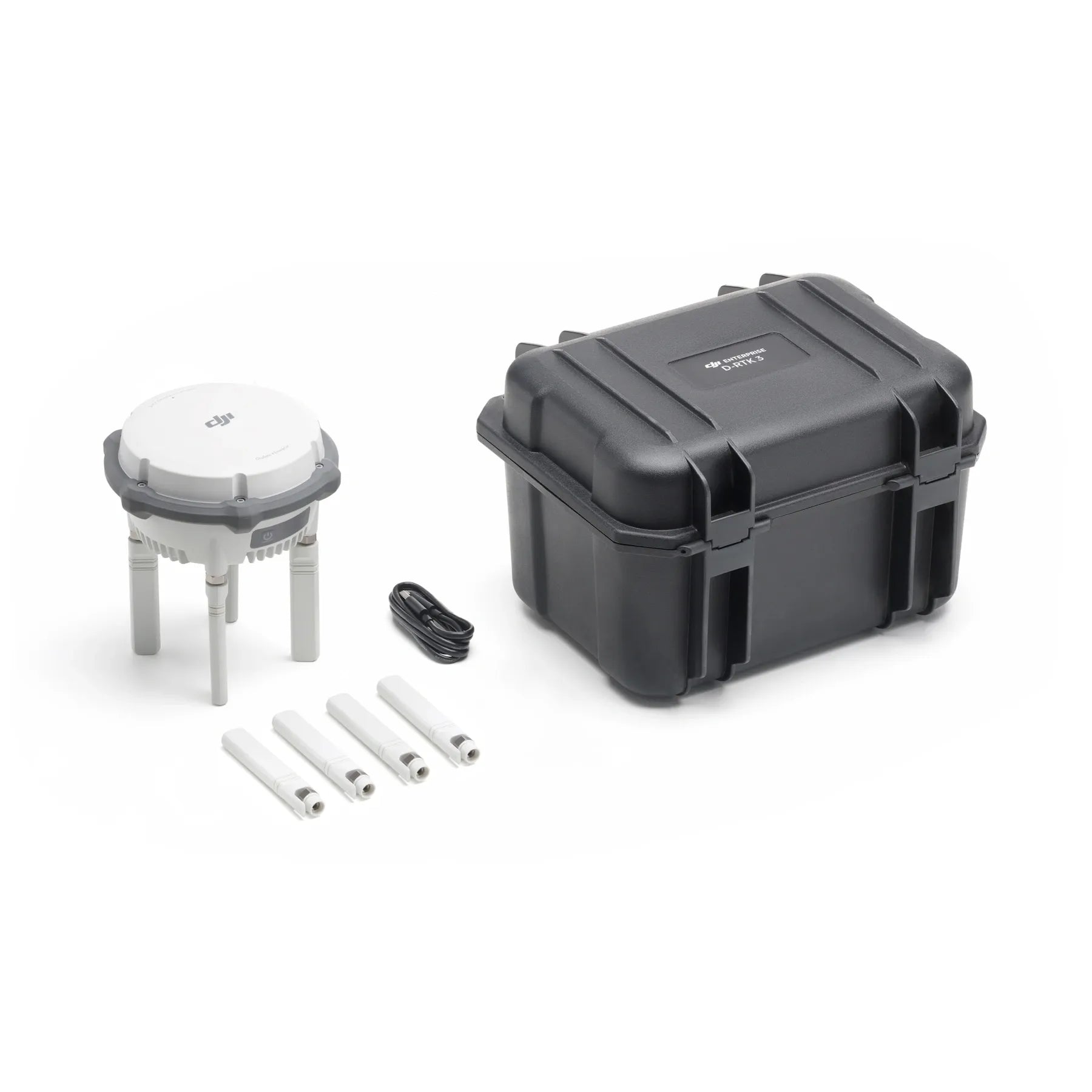

In the Box:

• D-RTK 3 Mobile Station

• Spare OcuSync Directional Antennas

• USB-C Cable

• Carrying Case

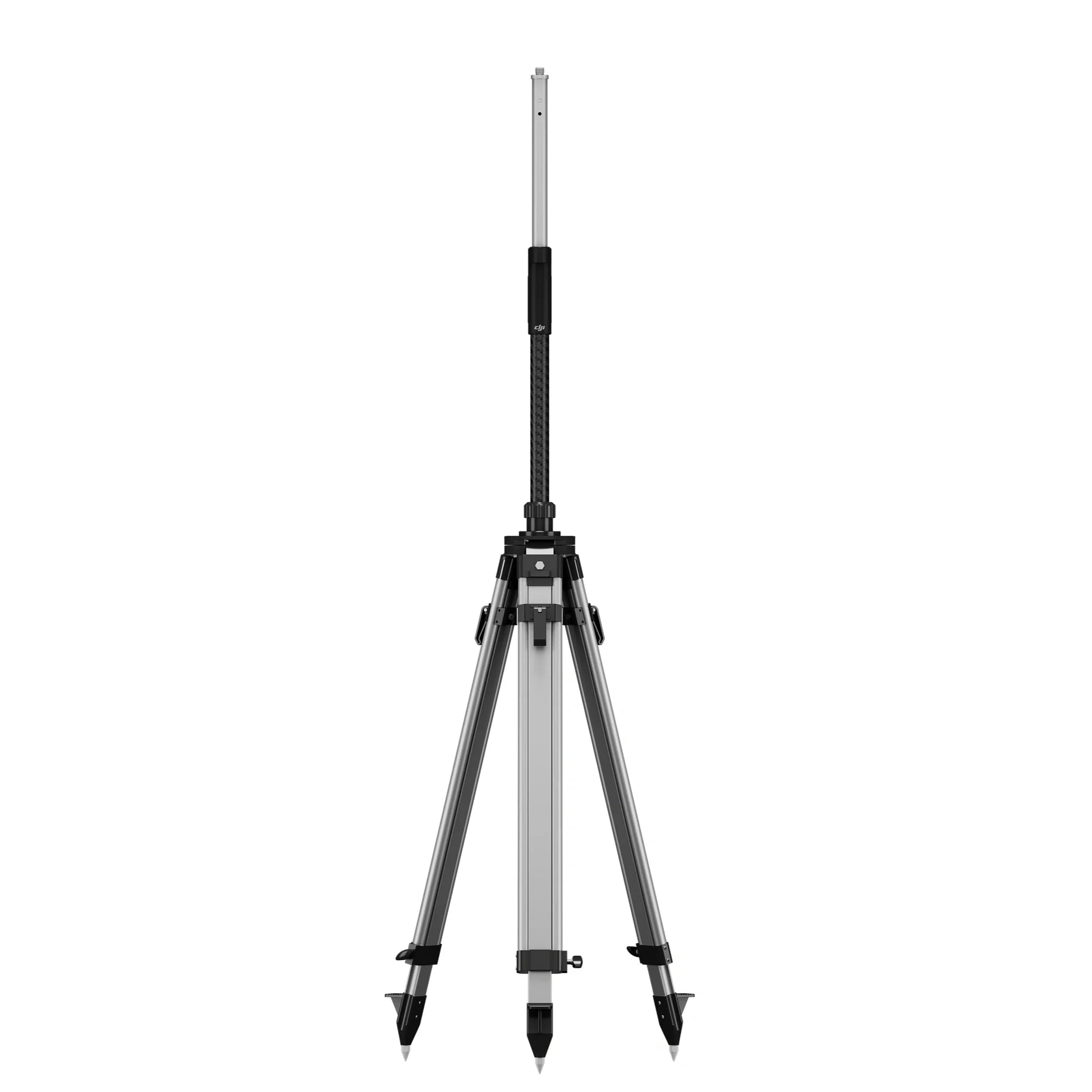

• Self-locking Tripod/Survey Pole (Optional)
